Texone Foundry Equipments is actively engaged in Manufacturing & Supplying a comprehensive gamut of equipment, such as Sturdy Fabricated Fix Moulding Boxes, MS Sturdy Fabricated Fix Moulding Boxes, Sturdy Fabricated Fix Molding Boxes, Quick Release, and Aluminum Moulding Box etc. our setup is situated in Kolhapur, Maharashtra, India. Majorly we serve our customers from all over India, African and Gulf countries.

Our entire assortment consists of Heavy Duty Fabricated Moulding Boxes, Aluminum Moulding (Mold) Boxes, C.I. Jackets, C.I. Match plates, Sand Muller, Intensive Sand Mixer, Drum Type Siever, Pin lifting Machines, Pedestal Grinders, Swing Frame Grinders, Sand Braker Machine, Sand Aerator ( For Muller ), Portable Siever, and Metal Handling.

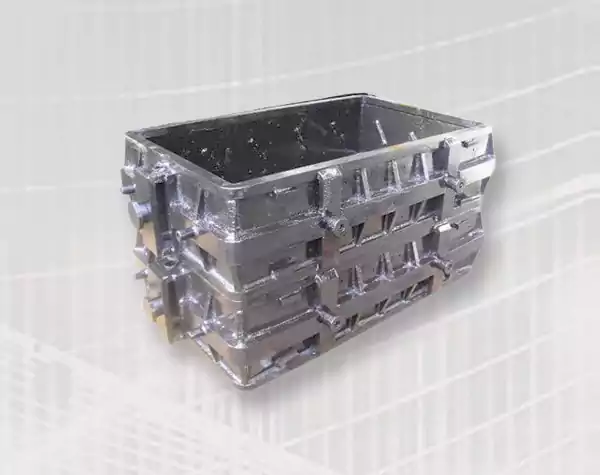

sturdy fabricated fix moulding boxes
Request Quote

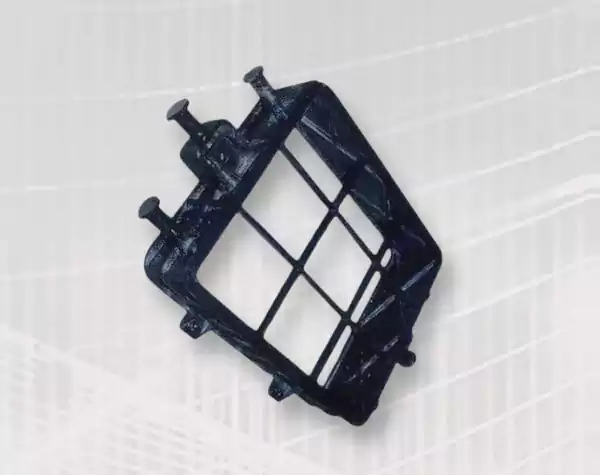

sturdy fabricated fix moulding boxes
Request Quote

"Sturdy Fabricated Fix Moulding Boxes for Foundry" likely refers to robust, pre-assembled (non-collapsible) moulding boxes used in metal casting foundries.


Material MS
Size 400 X 400 to 3000 X 3000 mm
Height 100 to 800 mm
Key features of Sturdy Fabricated Fix Moulding Boxes for Foundry:
  • Robust Construction : Usually fabricated from heavy-duty mild steel or cast iron. Designed to withstand repeated thermal cycling and mechanical stress during casting operations.
  • Fabricated : Constructed through welding or mechanical assembly, usually from steel or heavy-duty iron.
  • Fixed Design : These are non-split, rigid boxes that maintain a fixed shape, ensuring dimensional accuracy and consistent moulding.
  • Locking/Clamping Mechanisms : May include clamps, bolts, or keys to ensure tight sealing between top and bottom halves (cope and drag), if applicable.
  • Heat and Wear Resistance : Built to endure high temperatures and abrasive sand, often with surface treatments or coatings for extended lifespan.
  • Reinforced Corners and Ribs : Enhances structural integrity and resists warping or deformation during compaction and pouring.
  • Precision Machining : Machined surfaces allow for tight tolerances and proper alignment during the moulding process. Flatness ensures the parting surfaces are smooth and level for accurate mould.
  • Easy Handling Provisions : Includes lifting lugs, handles, or trunnions for safe and efficient handling with cranes or hoists.
Typical Features :
  • Made of mild steel or cast iron.
  • Taper pins and bushings for proper alignment.
  • Lifting lugs for crane handling.
  • Standard sizes or custom-built to specific casting needs.
  • Suitable for green sand or resin sand moulding.
Functioning of Sturdy Fabricated Fix Moulding Boxes in Foundry

Sturdy Fabricated Fix Moulding Boxes are essential tools used in foundries for the moulding process, which involves creating moulds to cast metal components.

Functioning of Fix Moulding Boxes in Foundries :
  • Moulding boxes (also known as flasks) hold the moulding sand and pattern in place to form a cavity for metal casting. A fix moulding box means the top and bottom parts are fixed in shape and dimension, ensuring consistency and repeatability.
  • Fabricated from sturdy metal materials (usually mild steel or cast iron) to resist wear and deformation under repetitive use and high pressure. It is composed of two parts Cope (top half) and Drag (bottom half). These are aligned using dowel pins or guides to ensure accurate mould matching.
Steps in Operation :

A pattern is placed inside the drag. Foundry sand is packed around the pattern in both the drag and cope. After compacting, the boxes can be removed or kept fixed depending on the type. The pattern is withdrawn, leaving behind a cavity matching the shape of the part. Molten metal is poured into the cavity. After cooling, the box is opened (if separable), and the casting is removed.

Fix Moulding Box Specialty :

It does not change shape or alignment, allowing for high dimensional accuracy. Best suited for batch or repetitive production where consistent mould size and alignment are required. It helps reduce mismatch defects in castings.

Speciality :
  • Long service life due to durable fabrication.
  • High repeatability and precision.
  • Reduces the risk of sand leakage or shifting during pouring.
  • Can withstand thermal and mechanical stresses during the casting process.
Application industries for Sturdy Fabricated Fix Moulding Boxes in Foundry :

Sturdy Fabricated Fix Moulding Boxes are essential components in foundries, particularly in the sand casting process. These boxes hold the moulding sand and shape the cavity into which molten metal is poured. Their robust construction and fixed design make them ideal for specific high-demand casting applications.

  • Automotive Industry
  • Heavy Machinery & Equipment
  • Railway Industry
  • Agricultural Machinery
  • Mining and Earthmoving Equipment
  • Wind Energy & Power Generation
  • Oil & Gas Industry
  • Marine Industry
