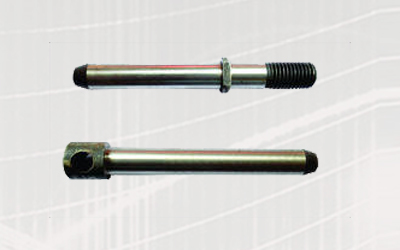

Match Plate Pins and Closing Pins are both essential components in the design and functioning of a molding box in the casting process, particularly in sand casting.
Product Details:| Material | SS |
| Diameter | Upto 10mm |
| Shape | Round |
A match plate is a metal plate used in the molding process, typically in foundries, to create sand molds for casting metal parts. The match plate holds the pattern for a molding box and ensures that the two halves of the mold (cope and drag) align properly. Match plate pins are used to align the cope and drag halves of the mold on the match plate. These pins are crucial for ensuring that the two halves of the mold fit together correctly, preventing misalignment that could result in defects in the cast part.
Match plate pins are used in the match plate system, where patterns for the mold are mounted on a plate (called a match plate), which allows for easy alignment of the cope (upper part) and drag (lower part) of the mold. These pins help in accurately aligning the cope and drag during the molding process. The pins ensure that the patterns are properly positioned when the mold is being created, which is crucial for dimensional accuracy. Match plate pins are often cylindrical and fit into specific holes on the mold to ensure the alignment is maintained during the molding process.
Match plate pins are typically made of steel or other durable materials that can withstand the pressure and heat associated with the casting process. The diameter and length of the pins are typically tailored to the specific mold and match plate size, ensuring that the fit is tight and holds the mold halves in alignment during the pouring and cooling process.
Match plate pins, like other parts in the mold-making process, need to be maintained to ensure they don't wear out or become misaligned over time, which could affect the quality of the castings.
Closing pins for molding boxes are used to secure the sides or components of the box together during the molding process. These pins help keep the mold in place while ensuring the integrity of the shape, especially when working with materials like concrete or resin. The pins provide a firm hold, preventing the box from shifting or coming apart during the filling and curing process.
Closing pins are used to secure and close the cope and drag halves of the mold together, ensuring that they don’t separate or shift during the pouring of molten metal.
These pins provide the necessary pressure to keep the two halves of the mold properly aligned, preventing leakage or misalignment of the casting cavity during the pouring and solidifying stages.
Closing pins are usually designed with a quick-release mechanism to easily open the mold once the casting has cooled. These pins are typically made from heat-resistant materials like stainless steel to withstand the harsh conditions of casting.
In the foundry industry, Match Plate Pins and Closing Pins are crucial components used in mold-making and casting processes. Match Plate Pins and Closing Pins are vital in the production of high-quality, precise castings across a variety of industries, ensuring that molds are stable and well-aligned throughout the casting process. They are primarily used in industries where metal casting is a vital part of manufacturing.
The specific industries that use these pins include:
